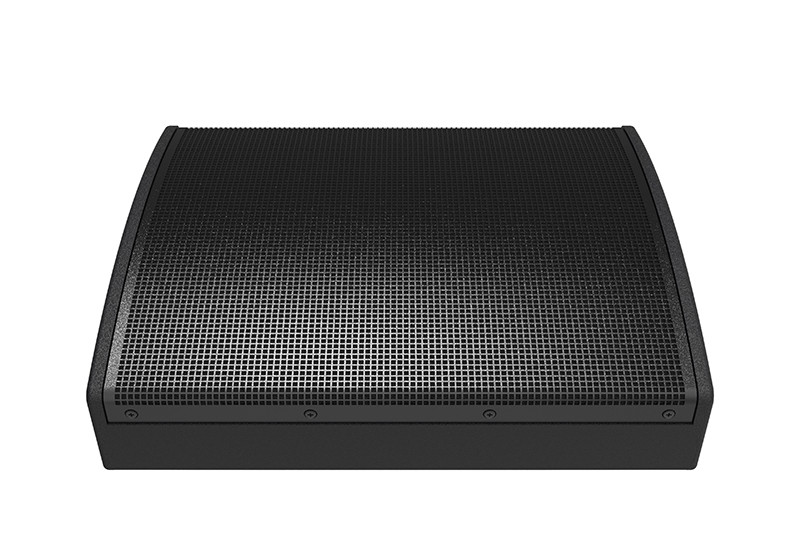

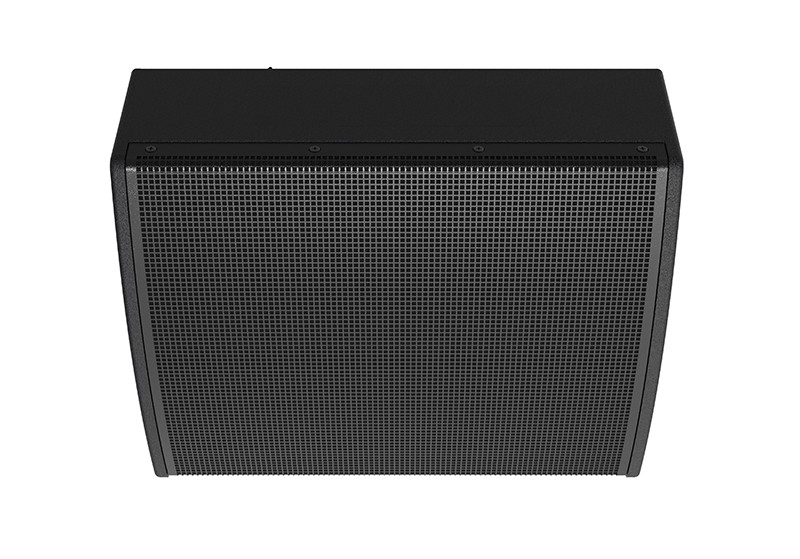

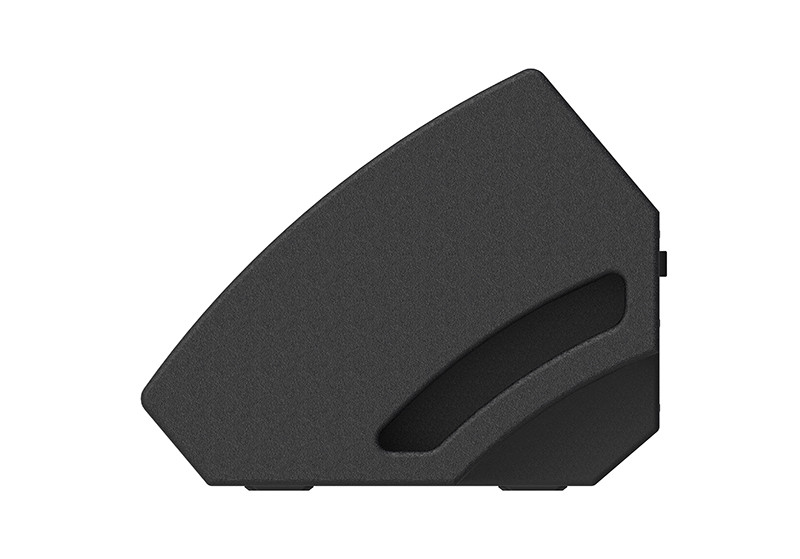

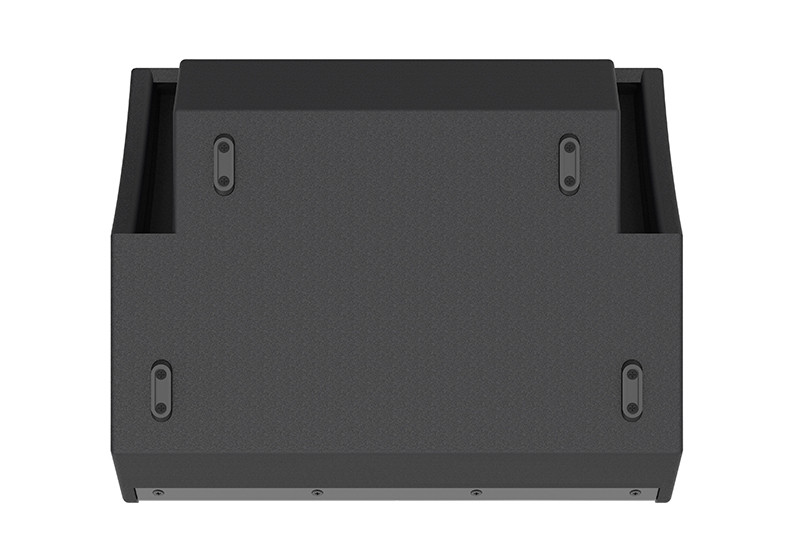

TD12M

系統類型：2分頻2單元同軸倒相箱

換能器配置：鐵氧體高頻驅動器1.75″(44mm音圈）×1

鐵氧體低頻驅動器12″(65mm音圈) ×1

最大聲壓級（Pmax@1m）： 124 dB

頻率帶寬（-10dB）：60Hz—18KHz

標稱指向性（-6dB）：90°H×90°V

功放控制：內置DSP處理，RJ485網口，Mic/Line卡儂插，增益調節

電源要求：AC220V

輸出級別：Class D

功率：1250W（850w*1+450w*1）

DSP：96KHz采樣率 24bit

阻尼系數：＞300 （10-400Hz,8ohms）

硬件規格

箱體材質：15mm（0.6″）樺木夾板

顏色：默認為黑色水性漆，可按要求訂制其他顏色

產品尺寸：W550mm*D442.7mm*H356mm

重量(每只) ：19.15kg

毛重（單裝）：21.25kg

參考應用領域：適合多功能廳、酒吧、體育聲場館等固定安裝

售價:

￥0.00

產品詳情

System type: 2-division 2-unit coaxial phase inversion box

Transducer configuration: ferrite high-frequency driver 1.75 ″ (44mm voice coil) × one

Ferrite low-frequency driver 12 ″ (65mm voice coil) × one

Maximum sound pressure level（ Pmax@1m ）： 124 dB

Frequency bandwidth (- 10dB): 60Hz - 18KHz

Nominal directivity (- 6dB): 90 ° H × 90°V

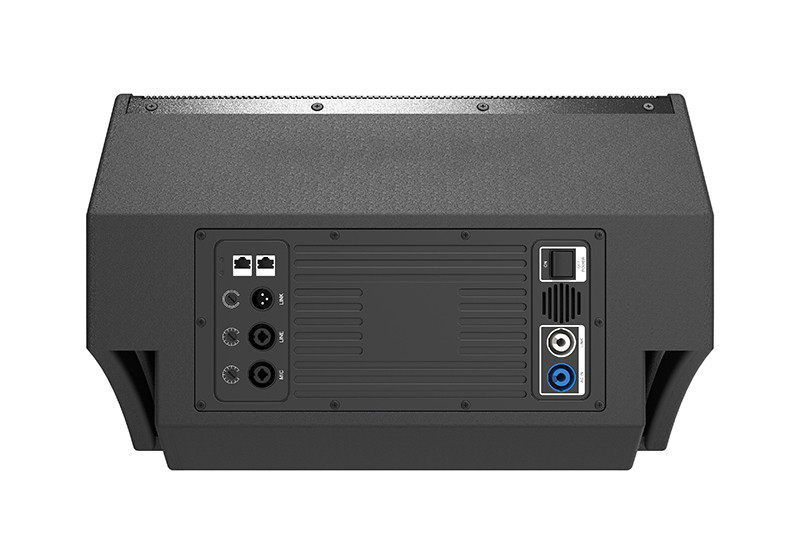

Power amplifier control: built-in DSP processing, RJ485 network interface, Mic/Line XLR plug, gain adjustment

Power requirement: AC220V

Output level: Class D

Power: 1250W (850w * 1+450w * 1)

DSP: 96KHz sampling rate 24bit

Damping coefficient: ＞ 300 (10-400Hz, 8ohms)

Hardware specifications

Box material: 15mm (0.6 ″) birch plywood

Color: black water-based paint by default, other colors can be customized according to requirements

Product size: W550mm * D442.7mm * H356mm

Weight (each): 19.15kg

Gross weight (single package): 21.25kg

Reference application field: suitable for fixed installation of multi-function hall, bar, sports sound hall, etc
